Description
Description

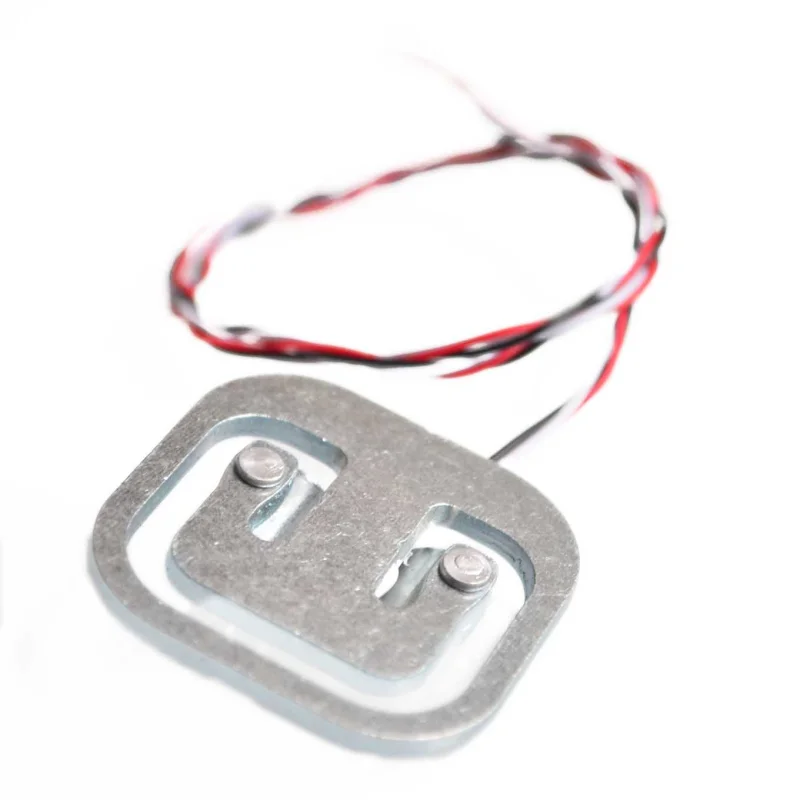

The 50Kg Load Cell Weight Sensor is a strain gaugebased sensor designed for measuring weight and force in electronic weighing systems. It converts mechanical load into a small electrical signal that can be processed by microcontrollers using an amplifier such as the HX711. The sensor is commonly used in digital weighing scales and provides reliable and repeatable measurements when properly calibrated. It is suitable for embedded systems, smart weighing devices, and automation projects.
Features
- Strain gaugebased load cell sensor
- Maximum load capacity up to 50 kg
- Analog millivolt signal output
- Aluminum alloy body construction
- High measurement repeatability
- Suitable for digital weighing systems
- Compatible with HX711 load cell amplifier
- Stable performance after calibration
- Compact bar-type mechanical design
- Suitable for Arduino and microcontroller projects
Specifications
- Load Capacity: 50 kg
- Sensor Type: Strain Gauge Load Cell
- Output Sensitivity: 1.0 0.15 mV/V
- Excitation Voltage: 510 V
- Zero Balance: 0.1 mV/V
- Nonlinearity: 0.05 %FS
- Hysteresis: 0.05 %FS
- Repeatability: 0.05 %FS
- Material: Aluminum Alloy
- Cable Length: 2030 cm
- Dimensions: 75 mm 12 mm 12 mm
- Operating Temperature: -10 C to 40 C
- Compatible Amplifier: HX711 Load Cell ADC
Links
- 50Kg Load Cell Datasheet
- load cell support 3D Model
- Load cell bracket
Tutorials
- Arduino Scale with HX711 and 50kg Bathroom Scale Load Cells | Step by Step Guide.
