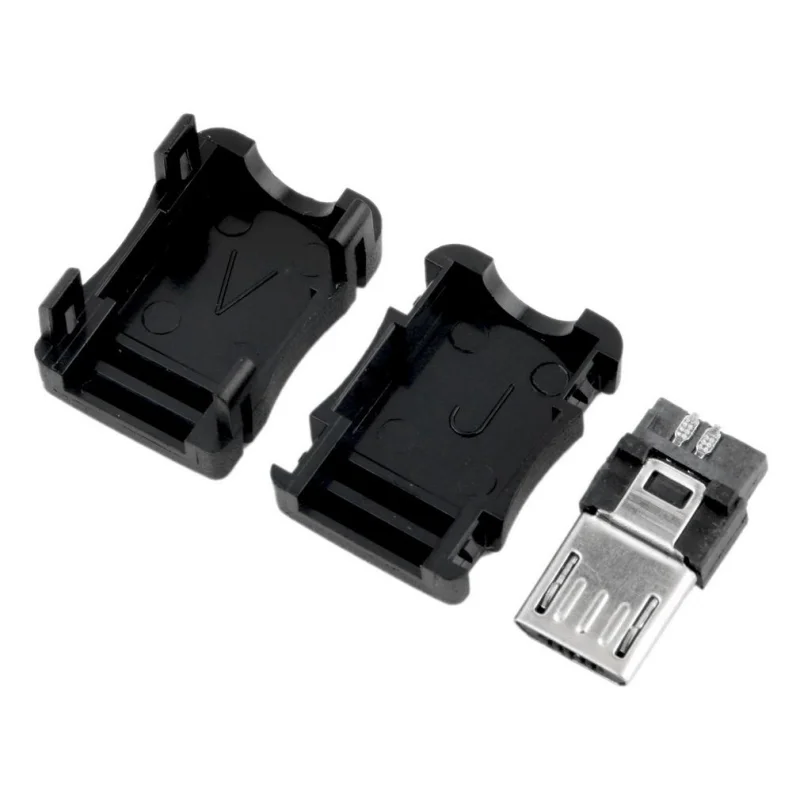

The 5 Pin Micro USB Type B Male Plug Connector is a compact interface connector designed for power delivery and USB data communication in embedded and portable electronic applications. It features a standard Micro USB Type B male layout with 5 electrical pins for VBUS, D+, D, ID, and GND connections. The connector supports stable signal transmission and reliable PCB or cable integration for charging and data transfer applications. Its compact form factor makes it suitable for DIY electronics, mobile device accessories, development boards, and USB-powered projects.
Features
- Standard Micro USB Type B male interface
- 5-pin USB connection layout
- Supports USB power and data transmission
- Compact connector structure
- Suitable for embedded electronic projects
- Compatible with Micro USB female sockets
- Stable electrical contact design
- Supports charging applications
- Suitable for DIY cable assemblies
- Corrosion-resistant metal contacts
- Lightweight and compact construction
- Easy integration into PCB and wiring projects
Specifications
- Connector Type: Micro USB Type B Male
- Pin Count: 5 Pins
- Interface Standard: USB 2.0
- Contact Type: Male Plug
- Supported Functions: Power and Data Transmission
- Pin Configuration: VBUS, D, D+, ID, GND
- Mounting Type: Cable/Adapter Integration
- Housing Material: Plastic and Metal
- Contact Material: Copper Alloy
- Connector Orientation: Straight
- Operating Voltage: 5V DC
- Current Rating: Up to 2A
- Color: Black and Silver
- Application Type: Charging and Data Communication
- Compatibility: Micro USB Type B Devices
