Description
Description

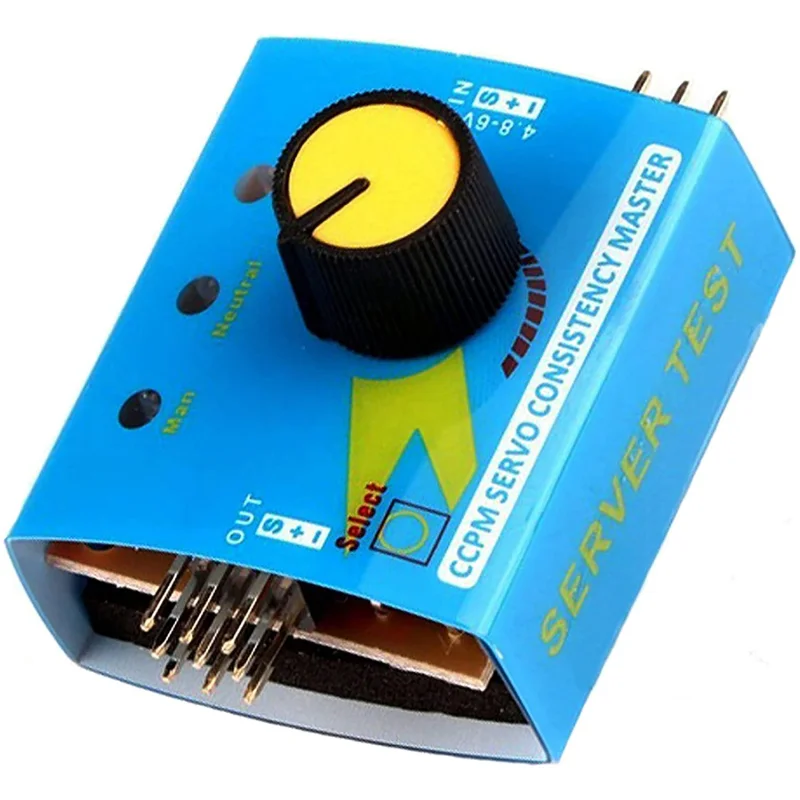

The 4.86V Multi Servo Tester is a compact diagnostic tool designed for testing and calibrating RC servos and electronic speed controllers (ESC). It features three operating modesmanual, neutral, and automatic sweepallowing precise evaluation of servo response and performance. The device supports simultaneous testing of up to three servos or ESCs, enabling quick comparison and system validation. Built for stable operation with LED status indicators, it ensures reliable feedback during testing. Ideal for robotics development, RC systems, and embedded electronics projects.
Features
- 3 operating modes: manual, neutral, automatic sweep
- Supports testing up to 3 servos simultaneously
- Compatible with up to 3 ESC units for comparison
- Manual knob control for precise speed adjustment
- Automatic window wiper sweep movement mode
- Neutral positioning mode for servo centering
- Standard PWM signal output for servo control
- LED indicators for mode and status feedback
- Compact and lightweight PCB design
- Stable operation within 4.26.0V DC range
- Suitable for CCPM servo systems
- Plug-and-play operation with standard 3-pin connectors
- Enables quick servo response time evaluation
- Useful for ESC calibration and signal testing
Specifications
- Input Voltage: 4.26.0V DC
- Recommended Operating Voltage: 4.86.0V DC
- Output Current: 15mA @ 5V
- Output Signal: 1.5ms 0.5ms PWM
- Channels Supported: Up to 3 servos or ESCs
- Control Modes: Manual, Neutral, Automatic
- Signal Type: Standard RC PWM signal
- Adjustment Method: Rotary potentiometer
- Indicators: LED status indicators
- Compatibility: RC servos and brushless ESC systems
- Connector Type: Standard 3-pin servo interface
- Operating Temperature: -10C to 50C
- Board Type: Compact PCB module
