Description
Description

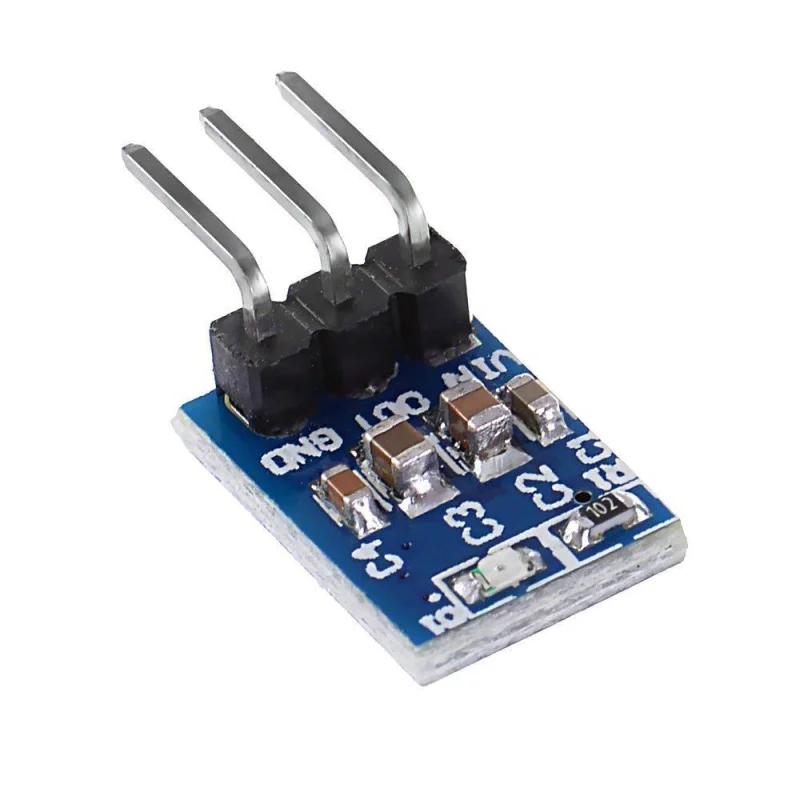

The 3.3V Voltage Regulator Module is a compact linear voltage regulator module designed to provide a stable 3.3V DC output from a higher input voltage source. It integrates a low-dropout regulator along with onboard capacitors to ensure stable and reliable operation while minimizing external component requirements. With built-in current limiting and thermal shutdown protection, the module is ideal for powering low-voltage digital circuits such as microcontrollers, sensors, and wireless communication modules. Its compact form factor makes it suitable for prototyping and embedded applications.
Featuers
- Stable 3.3V regulated output
- Integrated linear voltage regulator
- Onboard input and output capacitors
- Wide input voltage range
- Compact PCB design
- Built-in overload protection
- Thermal shutdown protection
- Low ripple and low noise output
- Simple plug-and-play power solution
- Suitable for microcontrollers and sensors
- Through-hole pin header connection
- Easy PCB and breadboard integration
- Reliable voltage stability
- Ideal for embedded systems
Specifications
- Device Type: Linear Voltage Regulator Module
- Output Voltage: 3.3V
- Maximum Output Current: 0.8A
- Input Voltage Range: 4.5V to 12V
- Regulation Type: Linear (LDO)
- Output Voltage Accuracy: 2%
- Protection Features: Current Limit, Thermal Shutdown
- Onboard Components: Input and Output Capacitors
- Mounting Type: Through-Hole Pin Header
- Module Dimensions: 12.33mm 8.9mm
- Operating Temperature Range: -40C to +85C
- Application Type: Low-Voltage Power Regulation
Links
- 3D Model
- Datasheet
