Description

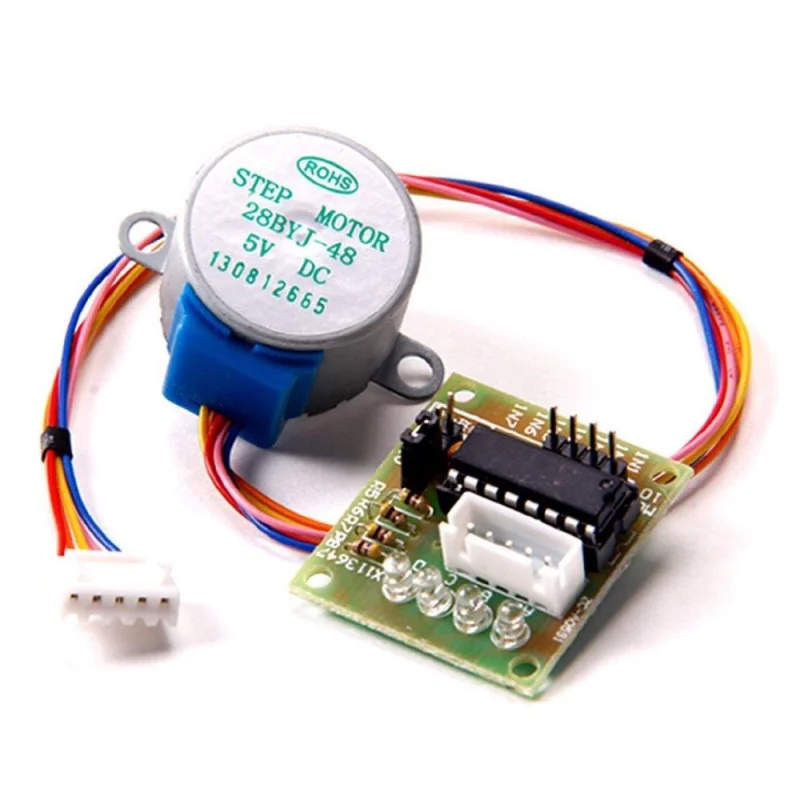

The 28BYJ-48 stepper motor with ULN2003 driver module is a compact and cost-effective solution designed for precise position control in embedded and robotics applications. It operates at 5V DC and features a high gear reduction ratio of 1:64, enabling accurate step movements with improved torque output. The included ULN2003 driver board simplifies interfacing with microcontrollers through standard digital pins and provides LED indicators for phase operation monitoring. Built for stable and repeatable performance, this module is widely compatible with platforms such as Arduino and other development boards. It is suitable for educational projects, automation systems, and low-speed precision control applications.
Features
- 28BYJ-48 stepper motor with integrated gearbox
- ULN2003 driver IC for simplified control interface
- 5V DC operating voltage for low-power systems
- 1:64 gear reduction ratio for increased torque
- 4-phase stepper motor configuration
- Built-in LED indicators for phase status monitoring
- Standard 5-pin motor connector for direct plug-in
- Compact driver board design for easy integration
- Stable stepping performance without encoder feedback
- Compatible with Arduino and other microcontrollers
- Low noise operation for precision applications
- Suitable for continuous or incremental motion control
Specifications
- Operating Voltage: 5V DC
- Motor Type: 4-Phase Unipolar Stepper Motor
- Driver IC: ULN2003
- Gear Reduction Ratio: 1:64
- Step Angle: 5.625 / 64
- Number of Phases: 4
- Control Interface: 5-wire cable
- Driver Board Dimensions: 34 31 15 mm
- Motor Diameter: 27 mm
- Cable Length: 270 mm
- Indicator: 4 LED phase indicators (A, B, C, D)
- Mounting Type: Standard bracket compatible
- Operating Temperature: -10C to +50C
- Compatibility: Arduino, AVR, PIC, Raspberry Pi
Links
- 28BYJ-48 (motor) Datasheet
- ULN2003 (Driver) Datasheet
- Stepper Motor 28BYJ-48 5V DC 3D Model
- ULN2003 Unipolar Stepper Driver Board 3D Model
Tutorials
- 28BYJ-48 stepper motor and ULN2003 Arduino (Quick tutorial for beginners)
