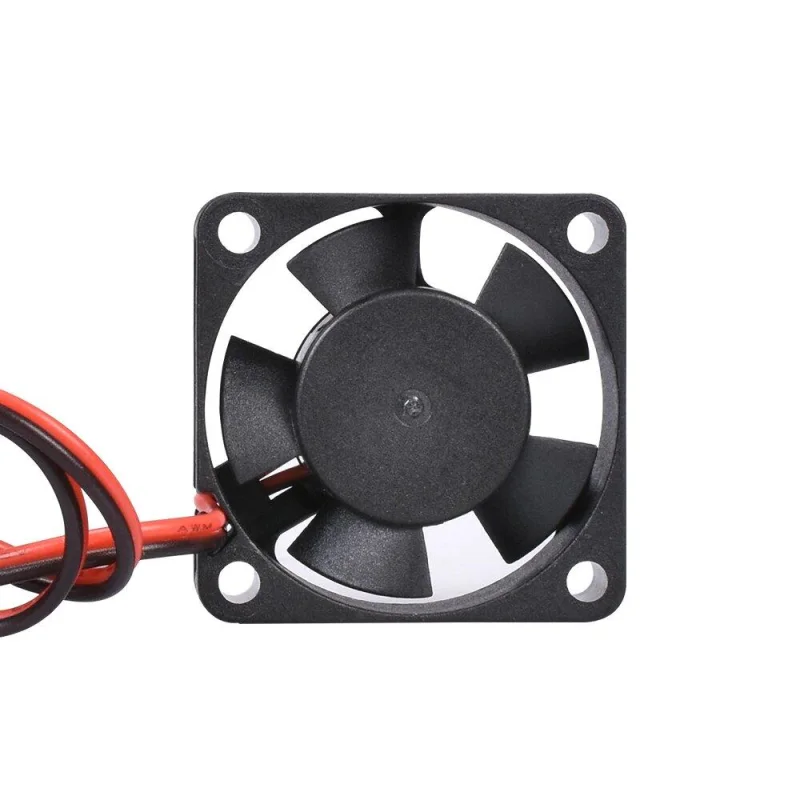

24V Brushless Cooling Fan 30x3010mm High-Speed

Description

Description

The 24V Brushless Cooling Fan 30x30mm is a compact cooling solution designed for electronic circuits and embedded systems. It operates at a high speed of 16500 RPM with efficient airflow performance of 1.9 CFM. Built with a sleeve bearing mechanism, it ensures stable operation and a long service life of up to 35000 hours. The fan provides reliable thermal management for PCBs, power supplies, and compact enclosures. Ideal for robotics, 3D printers, and cooling-sensitive electronic applications.

Features

• Brushless DC motor design

• Operating voltage 24V DC

• High rotational speed 16500 RPM 10%

• Airflow capacity 1.9 CFM 10%

• Low noise operation 20 dBA 10%

• Sleeve bearing construction

• Long lifespan up to 35000 hours

• Stable continuous operation

• Compact 30×30 mm form factor

• Efficient heat dissipation performance

• Low current consumption 0.13 A 10%

• Lightweight and easy installation

• Suitable for confined spaces

• Reliable thermal management solution

Specifications

• Operating Voltage: 24V DC
• Rated Current: 0.13A 10%
• Rated Speed: 16500 RPM 10%
• Air Flow: 1.9 CFM 10%
• Noise Level: 20 dBA 10%
• Bearing Type: Sleeve Bearing
• Life Expectancy: 35000 hours
• Fan Dimensions: 30 x 30 x 10 mm
• Motor Type: Brushless DC Motor
• Mounting Type: Screw Mount
• Application: Cooling for electronics and enclosures
