Description
Description

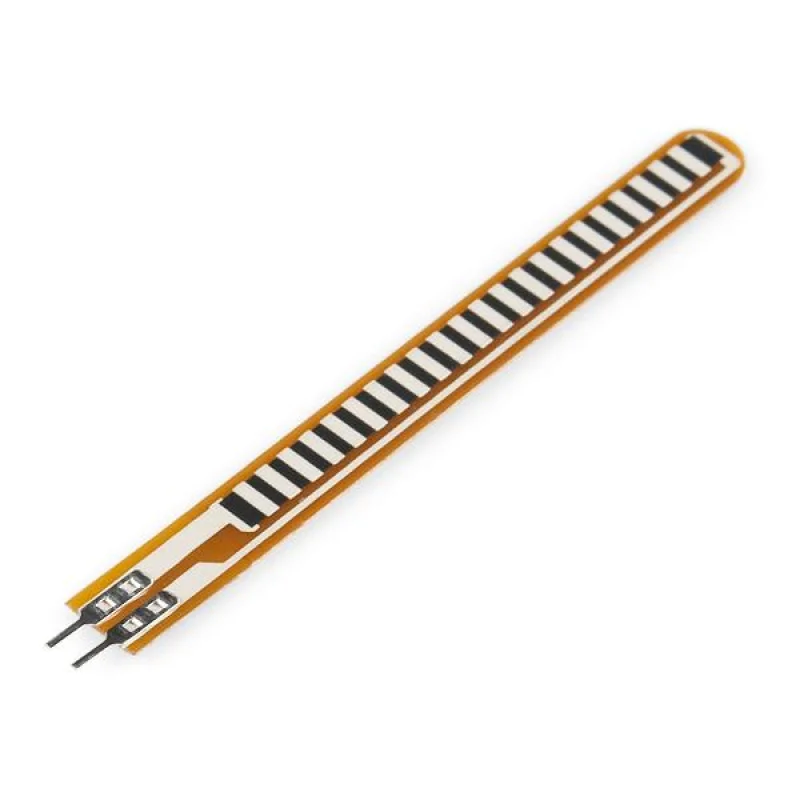

The 2.2 Inch Flex Sensor is a resistive bend sensor designed to detect angular deflection by varying its resistance. When bent, the resistance increases, especially when the metal pads are positioned on the outer side of the bend. It features a 10K nominal flat resistance and supports up to 0.5W continuous power. With 2.54 mm pin spacing, it is breadboard-friendly and easy to integrate into microcontroller-based systems. Ideal for robotics, wearable devices, gesture detection, and motion control applications.
Features
- Resistive bend sensing technology
- 2.2 inch flexible sensing length
- 10K nominal flat resistance 30%
- Resistance doubles at 180 bend
- 0.5W continuous power rating
- 1W peak power capacity
- 2.54 mm pin spacing
- Breadboard-compatible connector
- Passive analog output
- Lightweight and low-profile design
Specifications
- Sensing Length: 2.2 inch (55.9 mm)
- Flat Resistance: 10K 30%
- Bend Resistance: 2 flat resistance @ 180
- Power Rating Continuous: 0.5W
- Power Rating Peak: 1W
- Connector Pitch: 2.54 mm
- Output Type: Variable resistance (analog)
- Operating Principle: Resistive carbon element
- Maximum Bend Angle: 180 pinch bend
- Weight: < 5 g
Links
- Datasheet
- Flex Sensor-Spectra Symbol 3D Model
Tutorials
- How to use Flex sensor with arduino
- FLEX SENSOR TUTORIAL STEP BY STEP – Voltage Comparator Circuit Based on LM311 & No Arduino Code
