Description
Description

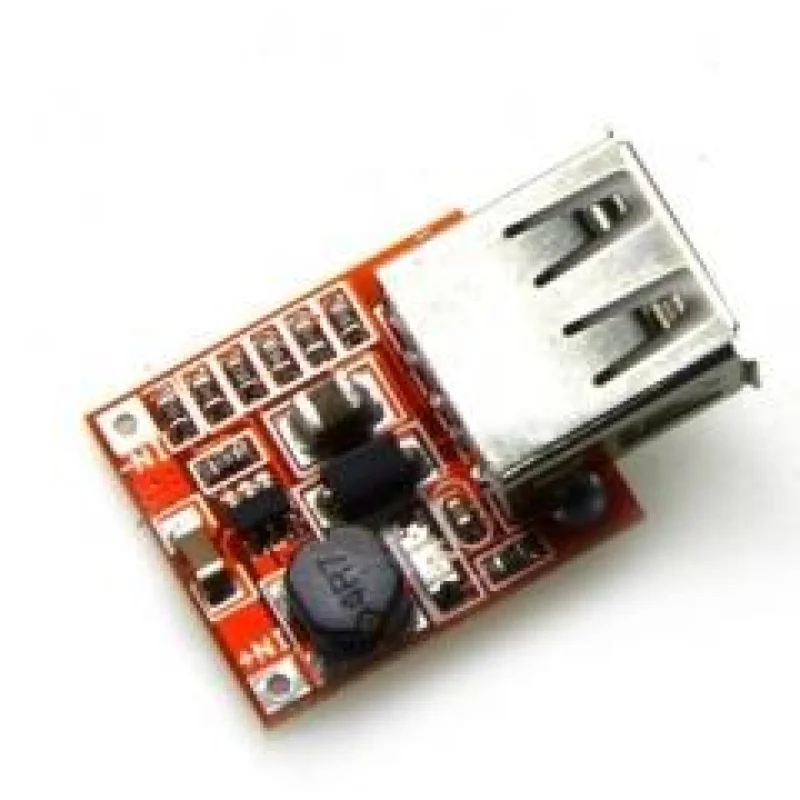

The 15 V to 5 V DC-DC Boost Converter 1 A USB Output Module is a step-up voltage regulation device designed to convert a low DC input voltage into a stable 5 V DC output with USB interface support. It operates with an input range of 15 V DC and provides a regulated output of approximately 5.15.2 V DC, suitable for powering USB-compatible loads. The module supports a rated output current of up to 1 A1.5 A depending on the input source, and operates at a switching frequency of 500 kHz for efficient power conversion. Its compact design allows integration into portable electronic systems and low-voltage battery-powered applications. It is compatible with single-cell lithium battery systems and low-power embedded devices.
Features
- DC-DC Boost Topology: High-efficiency step-up switching converter architecture
- Input Voltage Range: 15 V DC
- Output Voltage Regulation: Fixed 5.15.2 V DC USB output
- Output Current Capability: Up to 11.5 A depending on input source
- Switching Frequency: 500 kHz high-frequency operation for compact design
- USB Output Interface: Standard 5 V USB power output terminal
- Application Compatibility: Single-cell lithium batteries and low-voltage DC systems
- Module Construction: Compact PCB-based boost converter for portable electronics
Specifications
-
Input Voltage Range | 15 V DC
-
Output Voltage | 5.15.2 V DC (regulated USB output)
-
Output Current | Up to 11.5 A depending on input source
-
Conversion Efficiency | High-efficiency boost conversion (application dependent)
-
Switching Frequency | 500 kHz high-frequency operation
-
Output Interface | Standard USB 5 V output port
-
Regulator Type | DC-DC step-up (Boost) switching converter
-
Application Compatibility | Single-cell lithium batteries and low-voltage DC systems
-
Module Construction | Compact PCB-based boost converter module
-
Operating Temperature Range | Industrial-grade operation (-40 C to +85 C)
