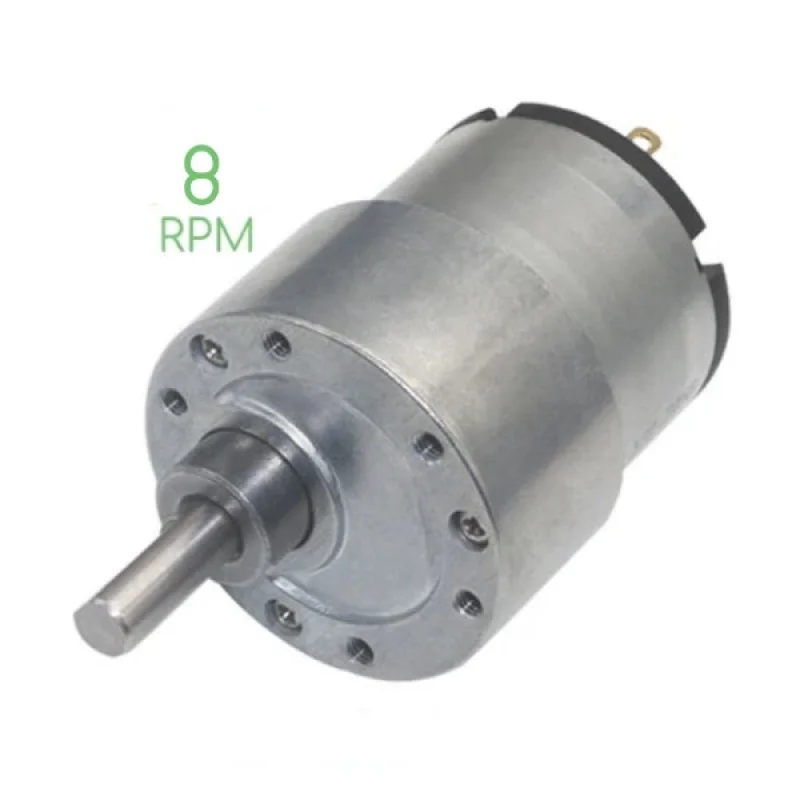

12V JGB37-520 DC Geared Motor 8 RPM High Torque

Description

Description

The JGB37-520 DC Geared Motor is a compact high-torque motor designed for low-speed, high-load applications. It operates at 12V with a speed range of 67 RPM and features a 1:86 reduction gearbox for enhanced torque output. Built with a durable metal gearbox and D-type shaft, it ensures stable and reliable performance under continuous operation. This motor is suitable for robotics, automation systems, smart locks, and mechanical drive applications requiring precise motion control.

Features

• Metal gearbox construction for durability

• 1:86 gear reduction ratio for high torque output

• Low-speed operation at 67 RPM @ 12V

• High torque output up to 2.5 kgcm

• 6 mm D-type shaft for secure coupling

• Compact 37 mm gearbox diameter

• Stable operation under continuous load

• Compatible with motor drivers and controllers

• Low noise and smooth rotation

• M3 mounting holes for easy installation

• Suitable for precision motion control

• Wide voltage support up to 24V operation

• Integrated 520 motor core for reliability

Specifications

• voltage rating12V
• Speed parameter:12v6-7RPM24v13RPM
• Torque: 2.5kg
• reduction ratio:1:86
• motor diameter:32.8mm
• Motor length:22m
• fixed aperture:3mm(M3)
• Gearbox diameter37mm
• Gearbox length25mm
• step height4.5mm
• shaft length:19mm
• axial diameter of Motor: 6mm(D-type)
