Description
Description

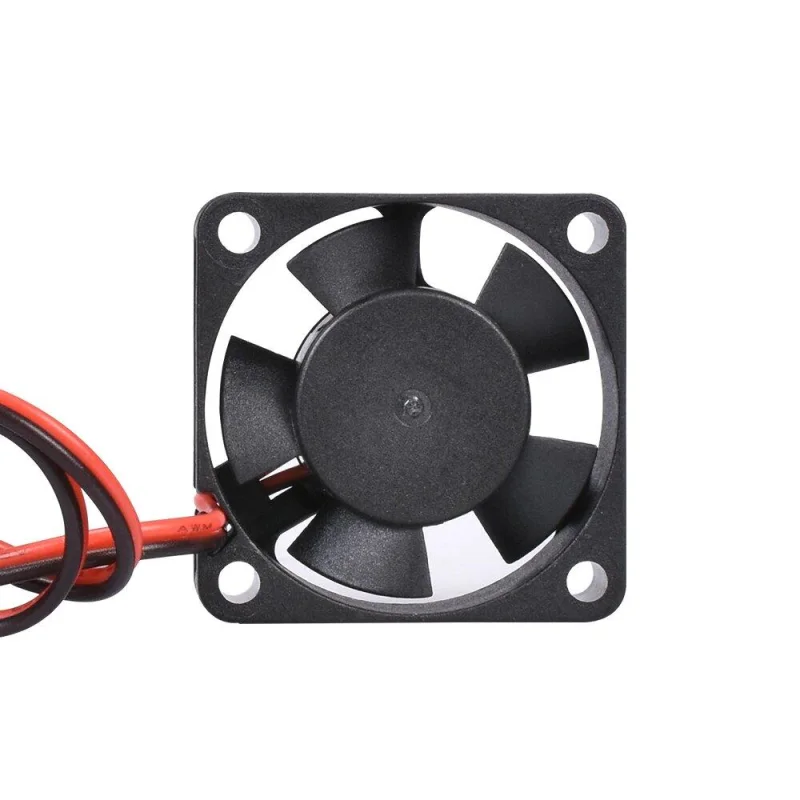

The 12V Brushless Cooling Fan (30x30x10mm) is a compact cooling solution designed for electronic circuits and embedded systems. It operates at high speed up to 16500 RPM, delivering consistent airflow with low noise performance. Built with a sleeve bearing structure, it ensures stable operation and long service life up to 35000 hours. Suitable for cooling PCBs, power modules, 3D printers, and compact enclosures.
Features:
- Brushless motor design for long lifespan
- Rated voltage 12V DC operation
- High speed up to 16500 RPM
- Airflow performance 1.9 CFM output
- Low noise level around 20 dBA
- Sleeve bearing for stable rotation
- Compact size 30x30x10 mm
- Low current consumption 0.13A
- Continuous operation capability
- Suitable for tight enclosures
- Lightweight structure for easy mounting
- Reliable thermal management performance
Specifications
- Rated Voltage: 12V DC
- Rated Current: 0.13A 10%
- Rated Speed: 16500 RPM 10%
- Air Flow: 1.9 CFM 10%
- Noise Level: 20 dBA 10%
- Bearing Type: Sleeve Bearing
- Operating Life: 35000 hours
- Fan Dimensions: 30 x 30 x 10 mm
- Motor Type: Brushless DC Motor
- Frame Material: Plastic
- Mounting Type: Screw Mount
- Application: Electronics Cooling
Links
- 30 x 30 x 10mm High Quality DC Fan Datasheet
- 12V Brushless Cooling Fan 3D Model
Tutorials
- Mini dc fan | Dc fan 3010mm 5v for 3d printer | mini 3d printer fan unboxing | mini cpu dc fan
Reviews
There are no reviews yet.
